RGU2680.GENSET
Electro-hydraulic Tire Changer for Mobile Service.
RGU2680.Genset is an an electro-hydraulic automatic tire changer for mounting / demounting truck, bus and HGV wheels with rims from 14″ up to 26″.

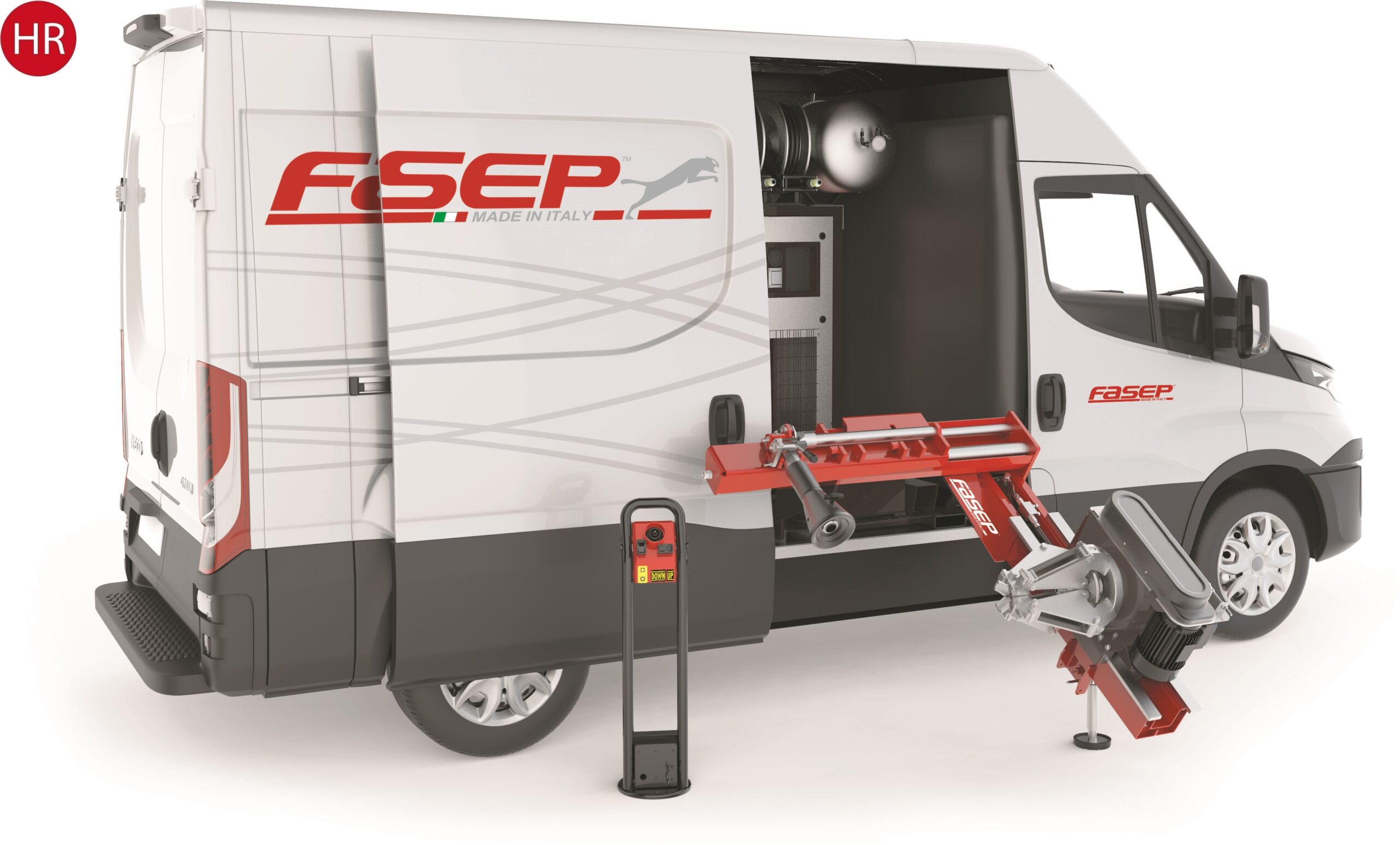

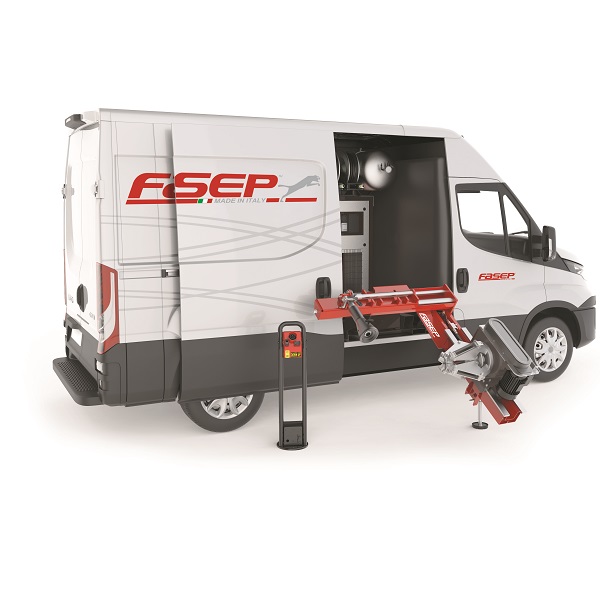

Its compact design makes it suitable for installation on mobile service vans. Once installed inside the van, the tire changer folds out to create a convenient and versatile work area.
– Automatic Truck Tyre Changer for Mobile service on Trucks and Buses (intensive use)
– Special for tubeless wheels
– Self-centering hydraulic chuck with 4 clamping jaws
– 1 speed Motor
– Clockwise and anticlockwise rotation of the chuck
– Roller tool for mounting / demounting
– Mobile Chuck Arm with hidraulic motion (left-right)
– Hydraulic lifting of chuck (up and down)
– Toolhead Arm with manual movement (left-right)
– Mobile remote control (low voltage)
– Safety valve on hydraulic circuit
– Chuck Gearbox motor 1,5 kW (2,0 Hp)
– Spindle shaft working height min 350 mm
– Maximum height of installation from the ground (road level) 700 mm
– Bead breaking force (in/out) 25kN
– Max rotation torque 2,3 kN
– Rim central hole min 120 mm
– Max wheel weight 500 kg
– Rim max diam. 14-26″
– Max wheel diam 1350 mm (53″)
– Max wheel width 960 mm (38″)
– Generator 4,4 kW
– Number of plugs 1*1ph + 1*3ph
– Air tank capacity 120 lt.
– Noise < 95 dB (A)
– Garanzia On Site
V092.002 – INST. MONT.c/o Ns.sede SMON.CARRI MOBILE
V155 – EXT WARRANTY FOR TRUCK TIRE CHANGERS
V147 – EXT GARANZIA SMONTAGOMME AUTOCARRI
SA318 – RULLIERA RGU2680
SA319 – ESTENSIONE 750mm RGU2680
SA317 – KIT RADIOCOMANDO RGU2680
SRA9219656 – PINZA PER CERCHIONI CAMION
SRA9236972 – MORSETTO RINFORZATO INCLINATO C3 + VITE
SA316 – CAR MATE RGU2680
SA080 – PREMI TALLONE PNEUMATICO
SA320 – ESTENSIONE 1000mm RGU2680
