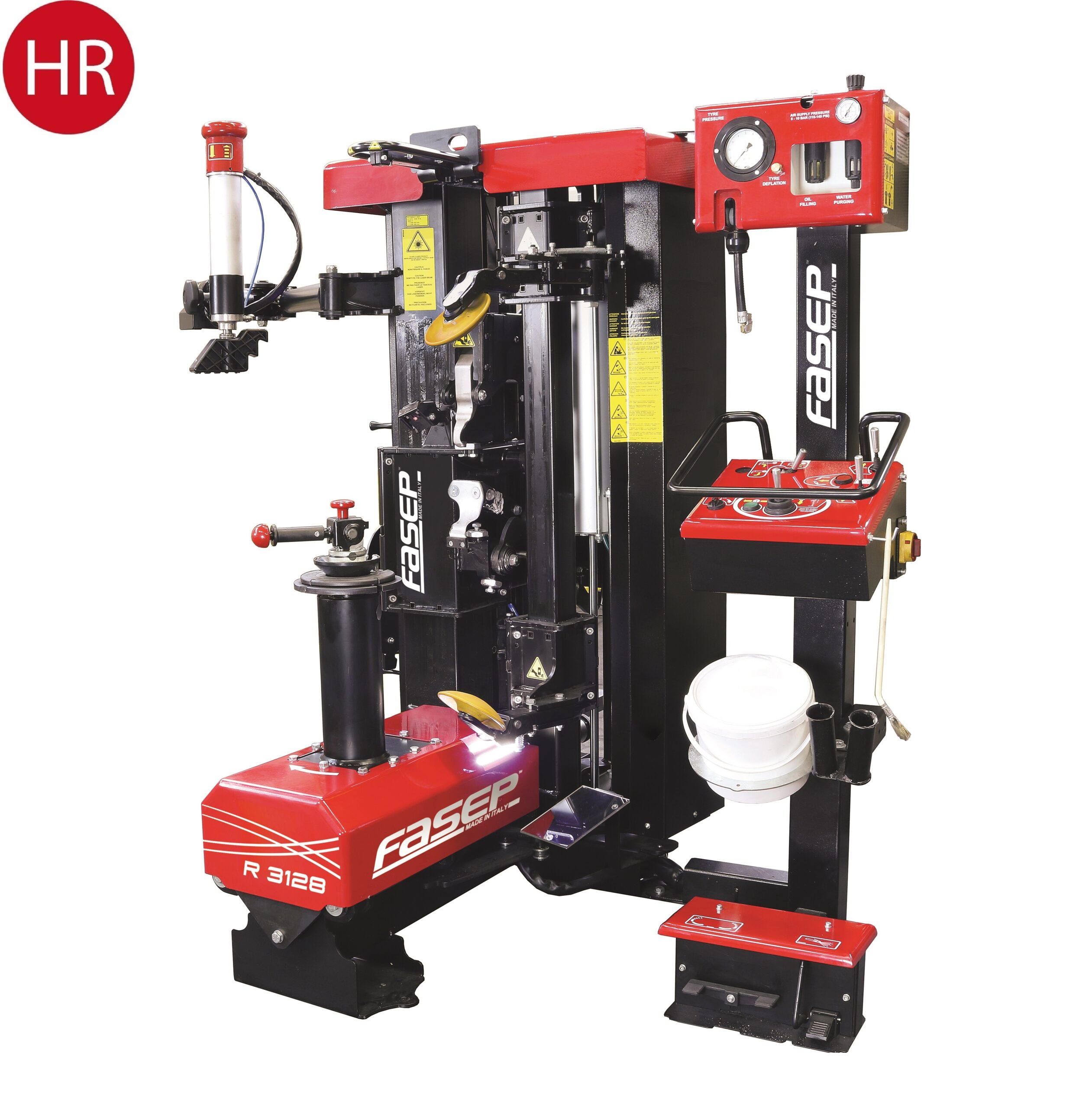

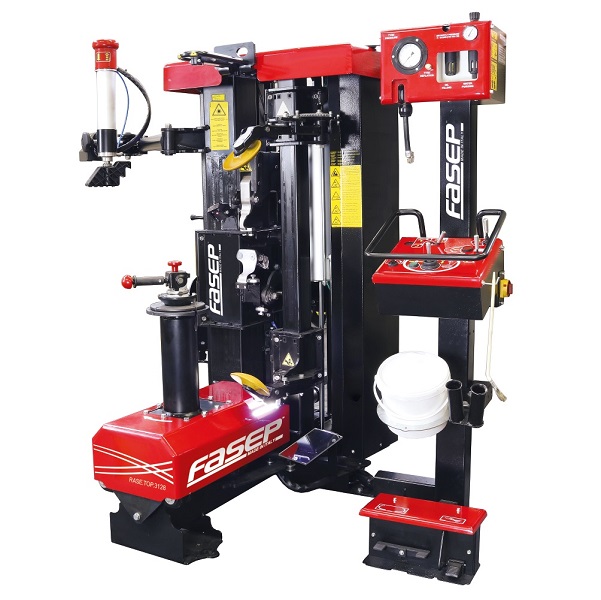

RASE.TOP.3128
Super Automatic Lever-Less.
Super Automatic Lever-Less Tire Changer suitable for car wheels having rim size from 12ā to 28ā, without any need for lever or other tools to dismount and mount any tyre. RASE.TOP.3128 easily removes tyre form the rim thanks to the bead breaking tower synchronized with clamping chuck. RASE.TOP.3128 is equipped with pneumatic bead pressing arm.
– Super Automatic Touchless Tire Changer
– Suitable for Car, Vans, SUVs and Light Trucks wheels. Normal, RFT, UHP tires.
– Center clamp with mechanical locking SMARTLOCK
– Adjustable self centering spindle
– Variable-speed Motor (Inverter)
– Bead breaker with 2 independent discs
– Double toolhead with automatic translation for mounting/demounting and bead breaking
– Pedal inflation with manometer on control panel
– Set of plastic protections for alloy rims

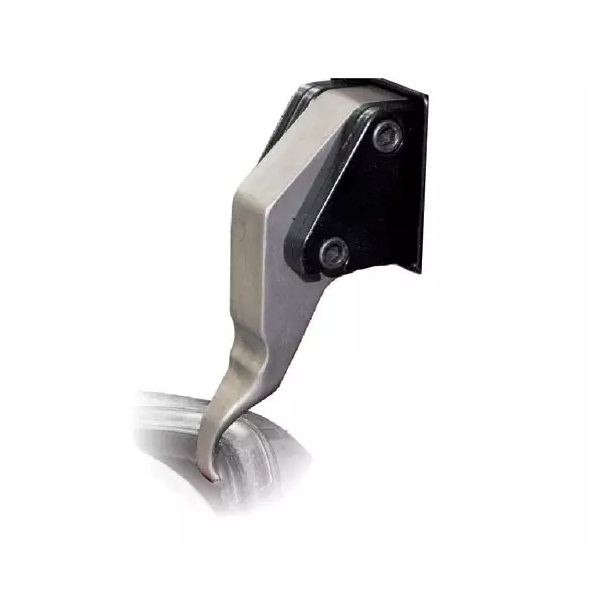

– Lever for leverless
– Removable foot pedals unit
– Pressure regulator with filter and manometer on control panel
– Air lubricator (automatic)
– Grease container and brush
– Inflation pressure limiter (4 bar)
– Bead pressing help device
– Bead breaking force 700 kg
– Rim max diam. 12-28″
– Max wheel diam 1200 mm (47″)
– Max wheel width 406 mm (16″)
– Noise < 70 dB (A)
V222 – INST. SPIEG. c/o CLI (SMONT.VETTURE TOP)
SA337 – SOLLEVARUOTE RASE.TOP.3128
SA334 – KIT GONFIAGGIO RUOTE TUBELESS ESTERNO
V144.001 – SUPPLEMENTO VERNICIATURA TC
SA295 – BAZOOKA JET INFLATOR 6lt
SA145 – CONO LTK6
SA144 – DOPPIO CONO LTK5
SA143 – KIT FURGONI LTK4
SA142 – KIT FURGONI LTK3
SA137 – KIT FORI CIECHI FRR RASE.TOP.312x
SA136 – KIT FRR “QUICK” RASE.TOP.312x
SIGLAART: RASE.TOP.3128 CE 230/50-60/1/INV.
CODART: S237.001
TIPOART: RASE
HW: 1125
SW: TCAS
POWER: 200-240 VAC 50-60Hz 1Ph INV
WEIGHT: Gross Weight 611.00 Kg / Net Weight 561.00 Kg
SHIPPING VOLUME: 186 cm / 114 cm / 143 cm
- S237.002 – RASE.TOP.3129 CE 230/50-60/1/INV.
