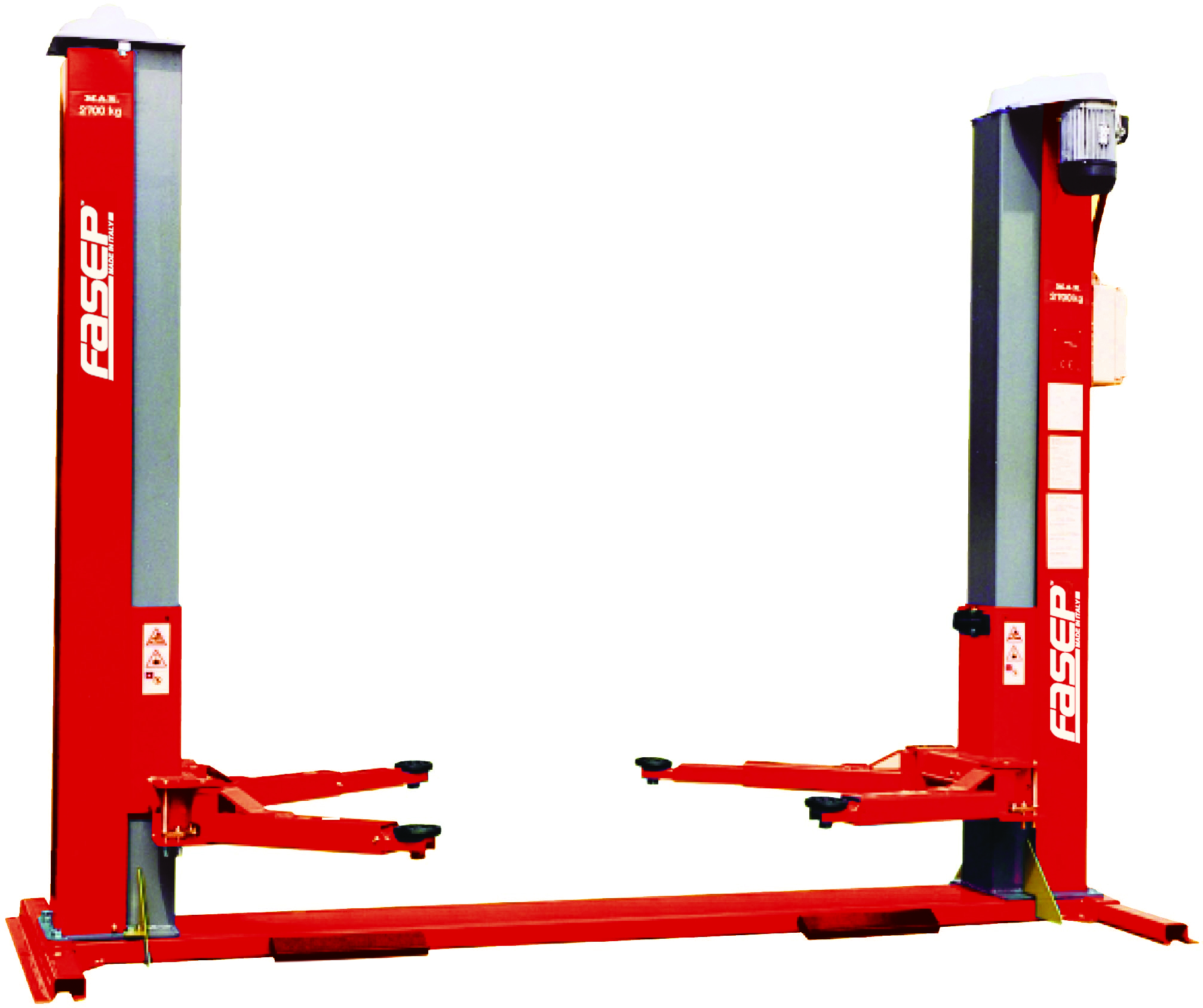

FZ41.3S
2-posts electro-mechanical lifter. Capacity 2700 kg.
Chassis contact. Surface mount. Cross beam on floor. Chain transmission. Electric safety device. Automatic device for locking the rotation of arms with automatic release on floor. Electric device for foot safety. Automatic and permanent nut lubrication system. Low voltage controls (24V). Lifting Capacity 2700 kg (5952 lbs).
–Ā 2-posts electro-mechanical lifter
–Ā Chassis contact
–Ā Floor connection with load-bearing base
–Ā Chain transmission
–Ā Electric safety device
–Ā Automatic device for locking the rotation of arms with automatic release on floor
–Ā Electric device for foot safety
–Ā Highly wear-resistant technopolymer bearing nuts
–Ā Low voltage controls (24V)
–Ā 4 symmetrical lowered support arms with 3 stages
–Ā Lifting Capacity 2700 kg (5952 lbs)
–Ā Post Height 2600 mm
–Ā Car max lifting height 1950 mm
–Ā Lift min stand height 85 mm
–Ā Clearance between posts 2480 mm
–Ā Total width 3260 mm
–Ā Lifting Time 33 s (adjustable)
–Ā Lowering Time 33 s (adjustable)
–Ā Anchors bolt supplied

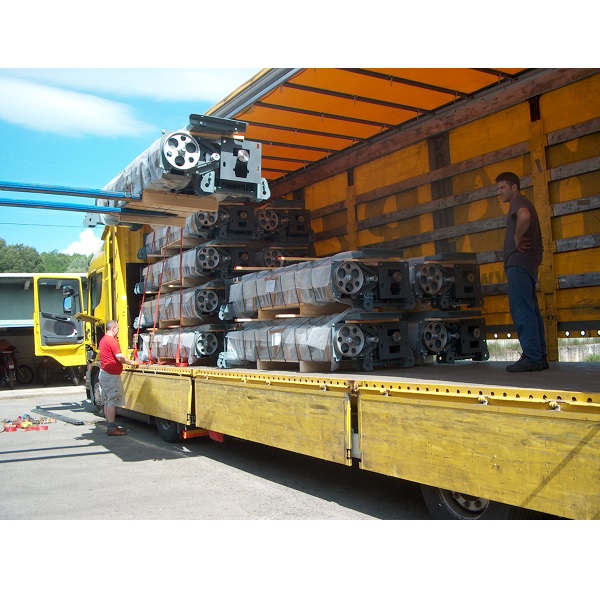

V1014 – TRASPORTO FZx 2 COL. LAZIO
V345 – INST. c/o CLI Ponte FZ4x, FZ5x Roma
V345.001 – INST. c/o CLI Ponte FZ4x, FZ5x, FGxx
PA168.002 – FZ4/27 SET TAMPONI RIALZATI (4PZ)

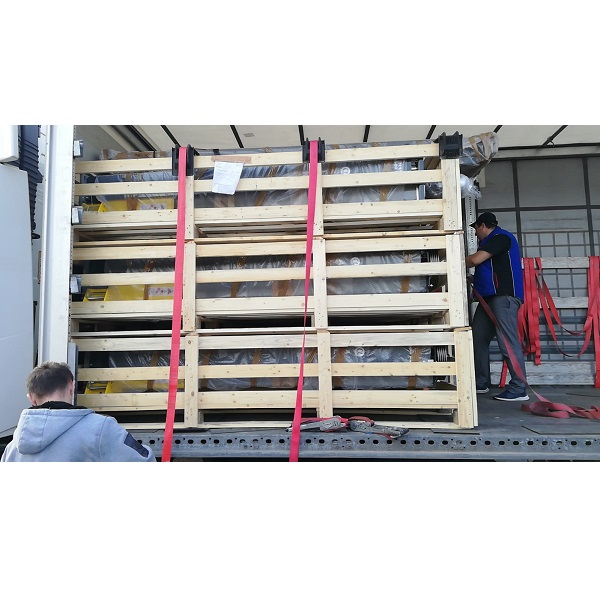

V378 – IMBALLO GABBIA DI LEGNO FZxx
V512 – KIT CAVALLETTI PER ASSETTO F371 (4pz)
