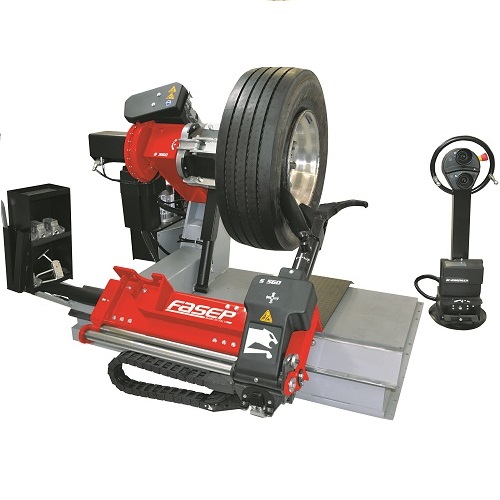

– Super Automatic Truck Tyre Changer for Trucks, Agricultural and OTR / Earth Moving vehicles
– Suitable for groove rims and split ring rims
– Suitable for normal and tubeless tires
– Self-centering hydraulic chuck with 4 clamping jaws
– 2 speed Motor
– Clockwise and anticlockwise rotation of the chuck
– Universal toolhead
– Chuck on fixed arm
– Hydraulic lifting of chuck (up and down)
– Electro-Hydraulic displacement (left right ) of the arm that contains the toolhead.
– Toolhead with automatic lifting and rotation (hydraulic)
– Mobile remote control (low voltage)
– Mobile ramp for easy positioning of the wheel
– Hydraulic pump motor 1,5 kW (2,0 Hp)
– Safety valve on hydraulic circuit
– Chuck Gearbox motor 1,8 kW (2,4 Hp)
– Spindle shaft working height min 350 mm
– Bead breaking force (in/out) 36 kN
– Max rotation torque 5,2 kN
– Clamping force max 48 kN
– Rim central hole min 80 mm
– Max wheel weight 1800 kg
– Rim max diam. 14-46″ (opt. 58″)
– Max wheel diam 2400 mm (94″)
– Max wheel width 1300 mm (51″)
– Noise < 70 dB (A)
– Garanzia On Site
– Compare features of different models.

V092 – INST. SPIEG. c/o CLI-SMONT.CARRI
V155 – EXT WARRANTY FOR TRUCK TIRE CHANGERS
V147 – EXT GARANZIA SMONTAGOMME AUTOCARRI
SA293 – KIT RADIOCOMANDO MULTICANALE
SRA9236972 – MORSETTO RINFORZATO INCLINATO C3 + VITE
SRA9219656 – PINZA PER CERCHIONI CAMION
SA101 – PROLUNGHE BLOCCAGGIO 47-56″ RGU5xxE
SA081 – KIT DISTANZIALI IN GOMMA GRIFFE
SA080 – PREMI TALLONE PNEUMATICO
SA062 – PROTEZIONE CERCHI IN LEGA (4pz)
SA053 – KIT DISTANZIALI SUPP. GRIFFE (4 pezzi)
SA033 – COPPIA MORSETTI CON VITE x STALLONATURA
SA030 – RULLO TUBELESS RGU
SA029 – LEVA ALZATALLONI AGRI
SA024 – PINZA CERCHI IN LEGA (RGU)

English Catalogue

VIDEO

•
  S197.003 – RGU566.EH CE 400/50/3
•
  S197.004 – RGU566E CE 400/50/3 AIR COMMAND
