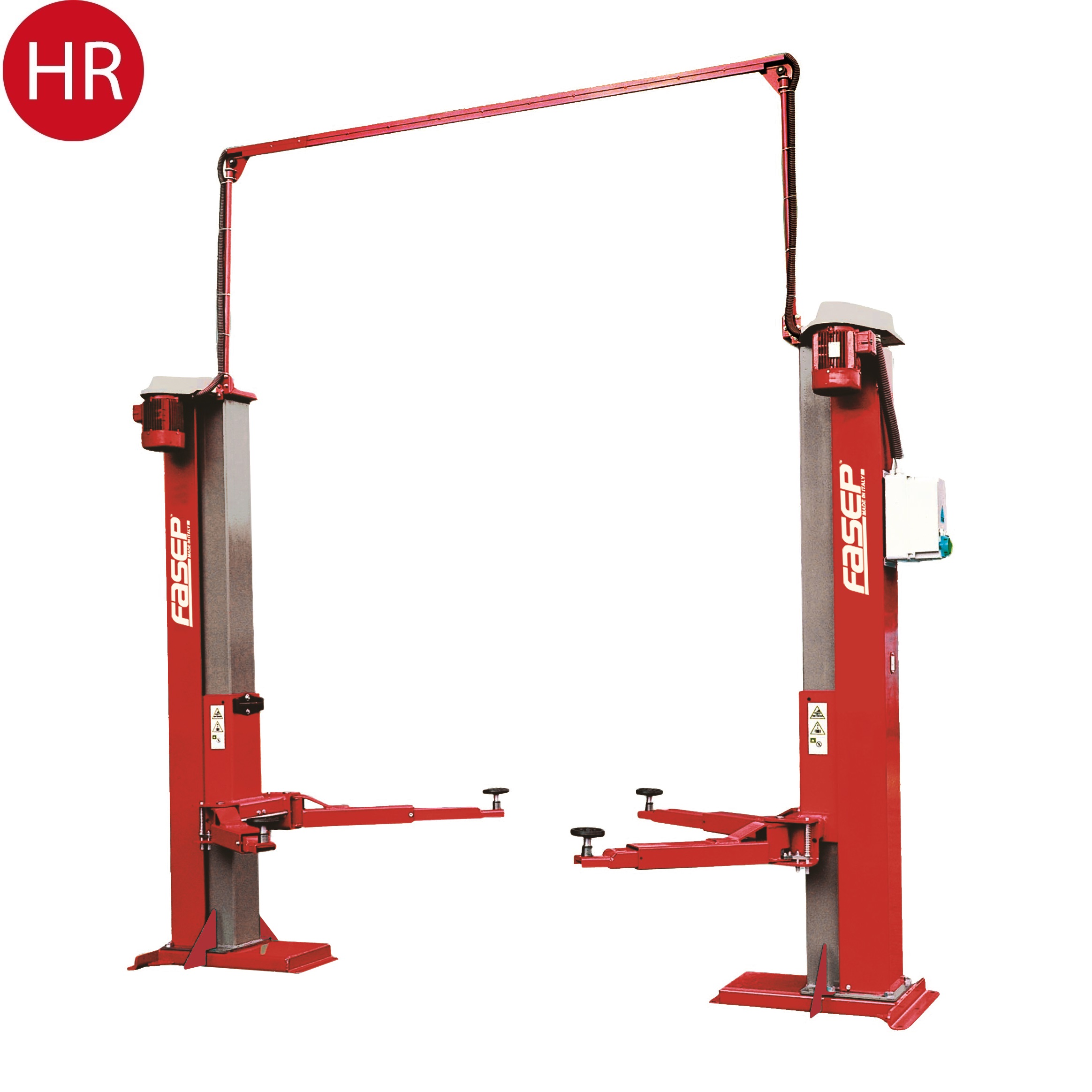

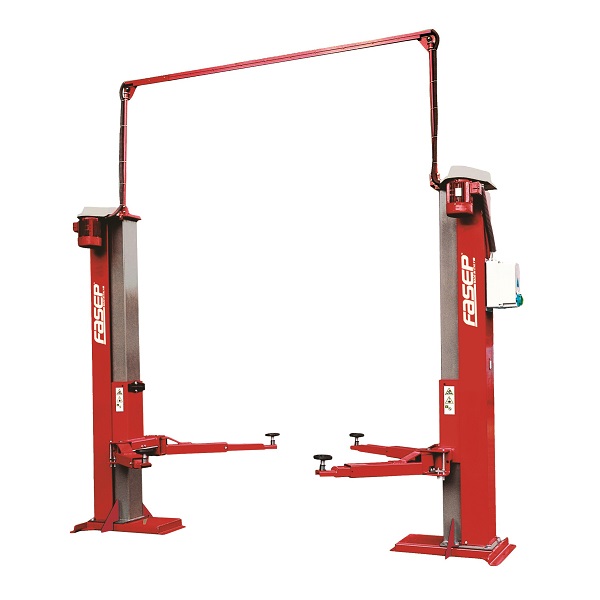

FZ52
Elektromechanischer Heber mit 2 Säulen.
Ohne Sockel – Querträger oben. Automatische Synchronisierung der Wagen. Elektrische Sicherheitsvorrichtung. Automatische Vorrichtung zum Blockieren der Armdrehung mit automatischer Entriegelung am Boden. Elektrische Vorrichtung zur Fußsicherheit. Automatisches und permanentes Mutternschmiersystem. Tragfähigkeit 3500 kg.
– 2-posts electro-mechanical lifter
– Chassis contact
– Cross beam on top
– Automatic sinchronization of saddles
– Electric safety device
– Automatic device for locking the rotation of arms with automatic release on floor
– Electric device for foot safety
– Highly wear-resistant technopolymer bearing nuts
– 4 lowered arms with 3 stages
– Lifting Capacity 3500 kg (7700 lbs)
– Post Height 2600 mm
– Car max lifting height 1950 mm
– Lift min stand height 85 mm
– Clearance between posts 2480 mm
– Total width 3220 mm
– Total length 2580 mm
– Lifting Time 33 s (adjustable)
– Lowering Time 33 s (adjustable)
– Anchors bolt supplied
V1014 – TRASPORTO FZx 2 COL. LAZIO
V345 – INST. c/o CLI Ponte FZ4x, FZ5x Roma
V345.001 – INST. c/o CLI Ponte FZ4x, FZ5x, FGxx
PA168 – FZ4/35 SET TAMPONI RIALZATI (4PZ)
PA192 – PROLUNGA 1mt TRAVERSA per FZ52
V378 – IMBALLO GABBIA DI LEGNO FZxx
V512 – KIT CAVALLETTI PER ASSETTO F371 (4pz)
