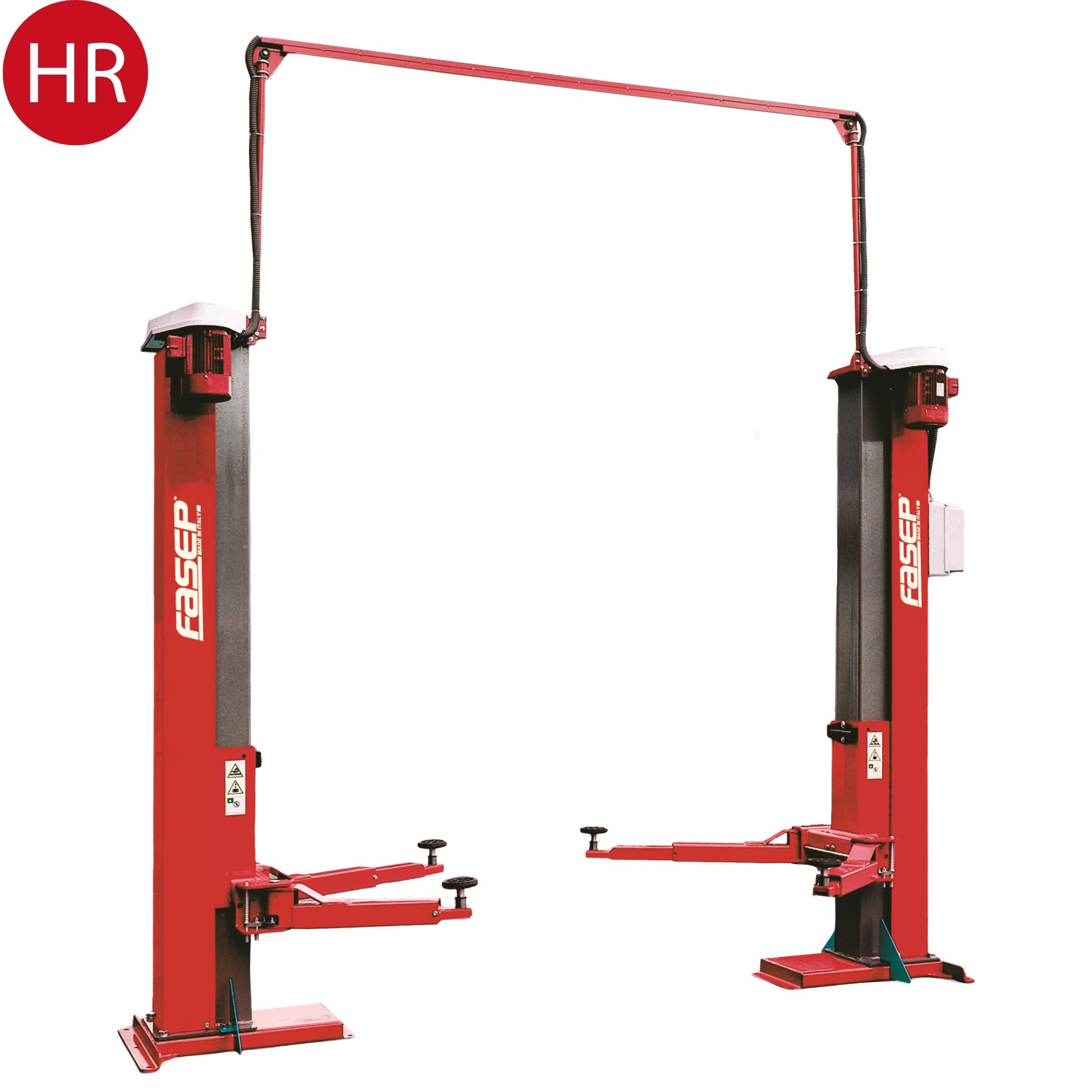

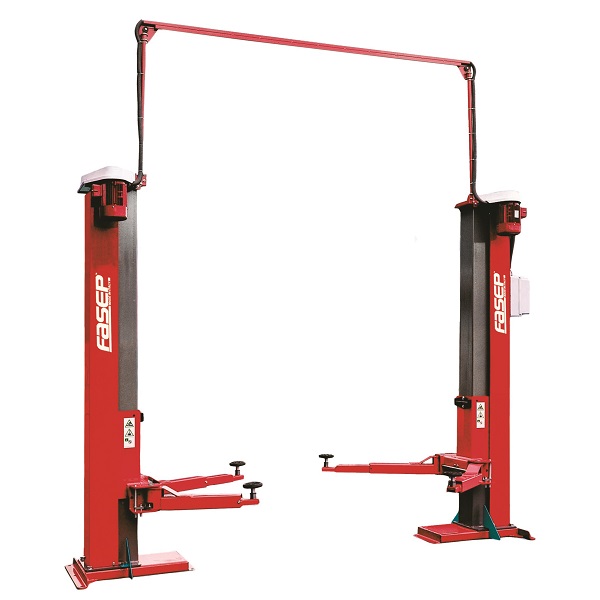

FZ42
Elektromechanischer Heber mit 2 Säulen. Tragkraft 2700 kg.
Ohne Basis – Querträger oben. Automatische Synchronisation von xxxxx. Elektrische Sicherheitsvorrichtung. Automatische Vorrichtung zum Sperren der Armdrehung mit automatischer Entriegelung am Boden. Elektrische Vorrichtung zur Fußsicherheit. Automatisches und permanentes Mutternschmiersystem. Niederspannungssteuerung (24 V). Tragfähigkeit 2700 kg.
– 2-posts electro-mechanical lifter
– Chassis contact
– Cross beam on top
– Automatic sinchronization of saddles
– Electric safety device
– Automatic device for locking the rotation of arms with automatic release on floor
– Electric device for foot safety
– Highly wear-resistant technopolymer bearing nuts
– Low voltage controls (24V)
– 4 lowered arms with 3 stages
– Lifting Capacity 2700 kg (5952 lbs)
– Post Height 2600 mm
– Car max lifting height 1950 mm
– Lift min stand height 85 mm
– Clearance between posts 2500 mm
– Total width 3220 mm
– Total length 2480 mm
– Lifting Time 33 s (adjustable)
– Lowering Time 33 s (adjustable)
– Anchors bolt supplied
V1014 – TRASPORTO FZx 2 COL. LAZIO
V345 – INST. c/o CLI Ponte FZ4x, FZ5x Roma
V345.001 – INST. c/o CLI Ponte FZ4x, FZ5x, FGxx
PA168.002 – FZ4/27 SET TAMPONI RIALZATI (4PZ)
V378 – IMBALLO GABBIA DI LEGNO FZxx
V512 – KIT CAVALLETTI PER ASSETTO F371 (4pz)
